Slotted Shims
- We create custom shim sheets and packers to meet your needs.
- Fast shipping across Australia, with overnight options available.
- We ensure durable, reliable shims and packers
Slotted Shims

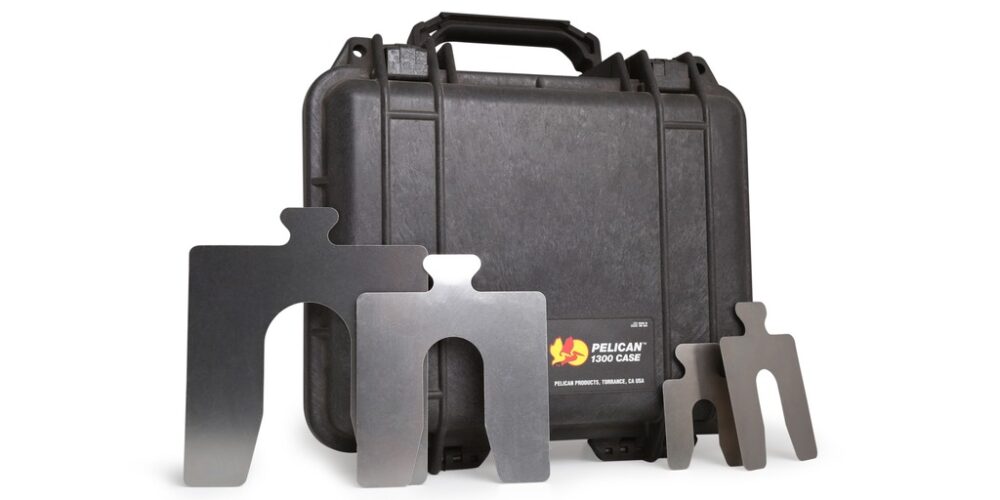

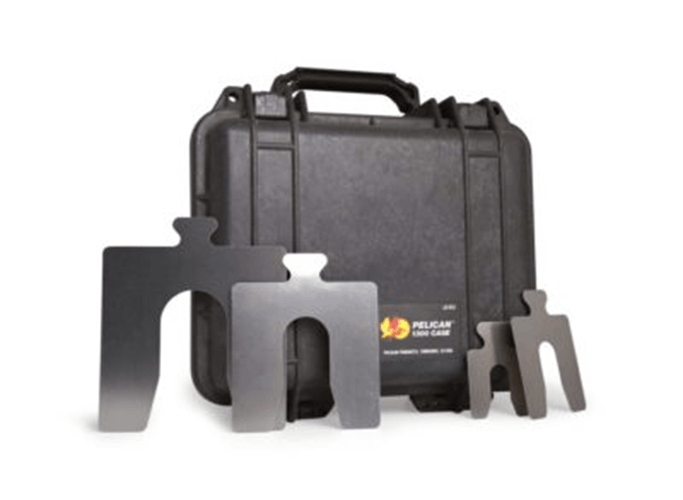

As well as specialising in stainless steel shim, shim packers, and brass shim sheets, PP Shim is proud to be able to supply Australia with a range of slotted shim kits which assist with levelling equipment during installation and other motor applications.
304 Stainless Steel Slotted Shims
Please find outlined below our metal slotted shim kit range.
Sizing Chart (10 Shims = Packet)
| Size | Slot Width | Slot Height | |
| 50 x 50 | A | 16mm | 39mm |
| 75 x 75 | B | 22mm | 55mm |
| 100 x 100 | C | 32mm | 77mm |
| 125 x 125 | D | 45mm | 95mm |
| 150 x 150 | F | 55mm | 111mm |
| 200 x 200 | E | 55mm | 147mm |
| Part # | Size | Thickness (mm) | Thickness (inch) |
| PP81205 | A | 0.025 | (0.001″) |
| PP81210 | A | 0.05 | (0.002″) |
| PP81213 | A | 0.075 | (0.003″) |
| PP81215 | A | 0.10 | (0.004″) |
| PP81218 | A | 0.125 | (0.005″) |
| PP81220 | A | 0.20 | (0.008″) |
| PP81225 | A | 0.25 | (0.010″) |
| PP81230 | A | 0.40 | (0.015″) |
| PP81235 | A | 0.50 | (0.020″) |
| PP81240 | A | 0.70 | (0.027″) |
| PP81245 | A | 1.00 | (0.039″) |
| PP81250 | A | 2.00 | (0.079″) |
| PP81255 | A | 3.00 | (0.118″) |
| PP81260 | A | 4.00 | (0.157″) |
| PP81265 | A | 6.00 | (0.236″) |
| Part # | Size | Thickness (mm) | Thickness (inch) |
| PP81305 | B | 0.025 | (0.001″) |
| PP81310 | B | 0.05 | (0.002″) |
| PP81313 | B | 0.075 | (0.003″) |
| PP81315 | B | 0.10 | (0.004″) |
| PP81318 | B | 0.125 | (0.005″) |
| PP81320 | B | 0.20 | (0.008″) |
| PP81325 | B | 0.25 | (0.010″) |
| PP81330 | B | 0.40 | (0.015″) |
| PP81335 | B | 0.50 | (0.020″) |
| PP81340 | B | 0.70 | (0.027″) |
| PP81345 | B | 1.00 | (0.039″) |
| PP81350 | B | 2.00 | (0.079″) |
| PP81355 | B | 3.00 | (0.118″) |
| PP81360 | B | 4.00 | (0.157″) |
| PP81365 | B | 6.00 | (0.236″) |
| Part # | Size | Thickness (mm) | Thickness (inch) |
| PP81405 | C | 0.025 | (0.001″) |
| PP81410 | C | 0.05 | (0.002″) |
| PP81413 | C | 0.075 | (0.003″) |
| PP81415 | C | 0.10 | (0.004″) |
| PP81418 | C | 0.125 | (0.005″) |
| PP81420 | C | 0.20 | (0.008″) |
| PP81425 | C | 0.25 | (0.010″) |
| PP81430 | C | 0.40 | (0.015″) |
| PP81435 | C | 0.50 | (0.020″) |
| PP81440 | C | 0.70 | (0.027″) |
| PP81445 | C | 1.00 | (0.039″) |
| PP81450 | C | 2.00 | (0.079″) |
| PP81455 | C | 3.00 | (0.118″) |
| PP81460 | C | 4.00 | (0.157″) |
| PP81465 | C | 6.00 | (0.236″) |
| Part # | Size | Thickness (mm) | Thickness (inch) |
| PP81505 | D | 0.025 | (0.001″) |
| PP81510 | D | 0.05 | (0.002″) |
| PP81513 | D | 0.075 | (0.003″) |
| PP81515 | D | 0.10 | (0.004″) |
| PP81518 | D | 0.125 | (0.005″) |
| PP81520 | D | 0.20 | (0.008″) |
| PP81525 | D | 0.25 | (0.010″) |
| PP81530 | D | 0.40 | (0.015″) |
| PP81535 | D | 0.50 | (0.020″) |
| PP81540 | D | 0.70 | (0.027″) |
| PP81545 | D | 1.00 | (0.039″) |
| PP81550 | D | 2.00 | (0.079″) |
| PP81555 | D | 3.00 | (0.118″) |
| PP81560 | D | 4.00 | (0.157″) |
| PP81565 | D | 6.00 | (0.236″) |
| Part # | Size | Thickness (mm) | Thickness (inch) |
| PP81810 | E | 0.05 | (0.002″) |
| PP81815 | E | 0.10 | (0.004″) |
| PP81820 | E | 0.20 | (0.008″) |
| PP81825 | E | 0.25 | (0.010″) |
| PP81830 | E | 0.40 | (0.015″) |
| PP81835 | E | 0.50 | (0.020″) |
| PP81840 | E | 0.70 | (0.027″) |
| PP81845 | E | 1.00 | (0.039″) |
| PP81850 | E | 2.00 | (0.079″) |
| PP81855 | E | 3.00 | (0.118″) |
| PP81860 | E | 4.00 | (0.157″) |
| PP81865 | E | 6.00 | (0.236″) |
| Part # | Size | Thickness (mm) | Thickness (inch) |
| PP81610 | F | 0.05 | (0.002″) |
| PP81615 | F | 0.10 | (0.004″) |
| PP81620 | F | 0.20 | (0.008″) |
| PP81625 | F | 0.25 | (0.010″) |
| PP81630 | F | 0.40 | (0.015″) |
| PP81635 | F | 0.50 | (0.020″) |
| PP81640 | F | 0.70 | (0.027″) |
| PP81645 | F | 1.00 | (0.039″) |
| PP81650 | F | 2.00 | (0.079″) |
| PP81655 | F | 3.00 | (0.118″) |
| PP81660 | F | 4.00 | (0.157″) |
| PP81665 | F | 6.00 | (0.236″) |
Shim Kits
| Part # | Kit | Sizes | Total shims |
| PP81945 | A | 50 x 50mm | 240 pieces |
| PP81955 | B | 75 x 75mm | 240 pieces |
| PP81965 | C | 100 x 100mm | 240 pieces |
| PP81975 | D | 125 x 125mm | 240 pieces |
| PP81985 | E | 200 x 200mm | 180 pieces |
| PP81990 | F | 150 x 150mm | 180 pieces |
| PP81950 | AB | 50 x 50 and 75 x 75mm | 480 pieces |
| PP81980 | ABC Mini | 50 x 50, 75 x 75 and 100 x 100mm | 520 pieces |
| PP81970 | ABC Maxi | 50 x 50, 75 x 75 and 100 x 100mm | 720 pieces |
Kit Contents
| Kit | Size | Slot width | Total shims | Thicknesses included (mm) | Case L x W x H (cm) | Weight (kg) |
| A | 50 x 50mm | 16mm | 240 | 20 of each: 0.05, 0.075, 0.10, 0.125, 0.20, 0.25, 0.40, 0.50, 0.70, 1.00, 2.00, 3.00 | 25 x 22 x 12 | 4.5 |
| B | 75 x 75mm | 22mm | 240 | 20 of each: 0.05, 0.075, 0.10, 0.125, 0.20, 0.25, 0.40, 0.50, 0.70, 1.00, 2.00, 3.00 | 32 x 28 x 16 | 8.5 |
| C | 100 x 100mm | 32mm | 240 | 20 of each: 0.05, 0.075, 0.10, 0.125, 0.20, 0.25, 0.40, 0.50, 0.70, 1.00, 2.00, 3.00 | 35 x 33 x 18 | 13.5 |
| D | 125 x 125mm | 45mm | 240 | 20 of each: 0.05, 0.075, 0.10, 0.125, 0.20, 0.25, 0.40, 0.50, 0.70, 1.00, 2.00, 3.00 | 41 x 35 x 23 | 20 |
| E | 200 x 200mm | 55mm | 180 | 20 of each: 0.05, 0.10, 0.20, 0.25, 0.40, 0.50, 0.70, 1.00, 2.00 | 43 x 31 x 30 | 30 |
| F | 150 x 150mm | 55mm | 180 | 20 of each: 0.05, 0.10, 0.20, 0.25, 0.40, 0.50, 0.70, 1.00, 2.00 | 42 x 35 x 23 | 18 |
| AB | 50 x 50 and 75 x 75mm | 16mm and 22mm | 480 | 20 of each size in the 12 thicknesses | 34 x 32 x 18 | 12.5 |
| ABC Mini | 50 x 50, 75 x 75, 100 x 100mm | 16, 22 and 32mm | 520 | 20 of each size in 0.05, 0.10, 0.20, 0.25, 0.40, 0.50, 0.70, 1.00 plus 10 of each size in 2.00 | 34 x 32 x 18 | 13 |
| ABC Maxi | 50 x 50, 75 x 75, 100 x 100mm | 16, 22 and 32mm | 720 | 20 of each size in the 12 thicknesses | 50 x 44 x 24 | 26 |
Note: 10 shims = packet. Kits contain 20 shims per thickness.
Kits A, B, C, D, AB and ABC Maxi include 0.05, 0.075, 0.10, 0.125, 0.20, 0.25, 0.40, 0.50, 0.70, 1.00, 2.00 and 3.00mm.
Kits E and F include 0.05, 0.10, 0.20, 0.25, 0.40, 0.50, 0.70, 1.00 and 2.00mm.
Kit ABC Mini includes 20 of each thickness from 0.05 to 1.00mm, plus 10 of each in 2.00mm.
Contact us today on 02 4646 1166 for a quote or to discuss the options available with our slotted shims and shim kits.
Ordering Slotted Shims is simple
1. Get in touch
Let us know what slotted shims you need.
2. A quote is given
We’ll provide you with a price for your slotted shim order.
3. Delivery
We can ship your slotted shims or you can pick it up from our head office.
Slotted Shim FAQs
What are slotted shims?
Slotted shims come in a range of forms and may be used for many applications. An open, generally U-shaped slot is a common feature. They may be used as conventional spacers or can be placed around existing bolts and screws. Some slotted shims have tabs on them to make insertion easier.
What are slotted shims used for?
Slotted shims are utilised on assembled machine components to maximise alignment and balance. Slotted shims are great for delivering consistent alignment and preventing costly equipment damage.
How do I choose the right size slotted shim?
Selecting the correct size involves measuring the gap or spacing you need to adjust. Ensure the shim’s slot dimensions and thickness match your specifications. If you need any assistance with the ideal sizing for your needs, simply get in touch with our expert team.
Can slotted shims be used in outdoor or harsh environments?
It depends on the material. Metal-slotted shims are often suitable for harsh environments, while plastic-slotted shims may be designed for specific conditions. Check the product specifications for environmental suitability.
Are slotted shims reusable?
Slotted shims can generally be reused if they remain in good condition. Inspect them before reuse to ensure they still meet your requirements. If your slotted shims are no longer reusable, call us at 02 4646 1166, and we’ll assist you in ordering the replacements you need.
What is included in a slotted shim kit?
A slotted shim kit typically includes a variety of slotted shims in different sizes and thicknesses, allowing for flexibility in adjusting and aligning components. Some kits may also include accessories like spacers or tools for installation.
